DESCRIPTION

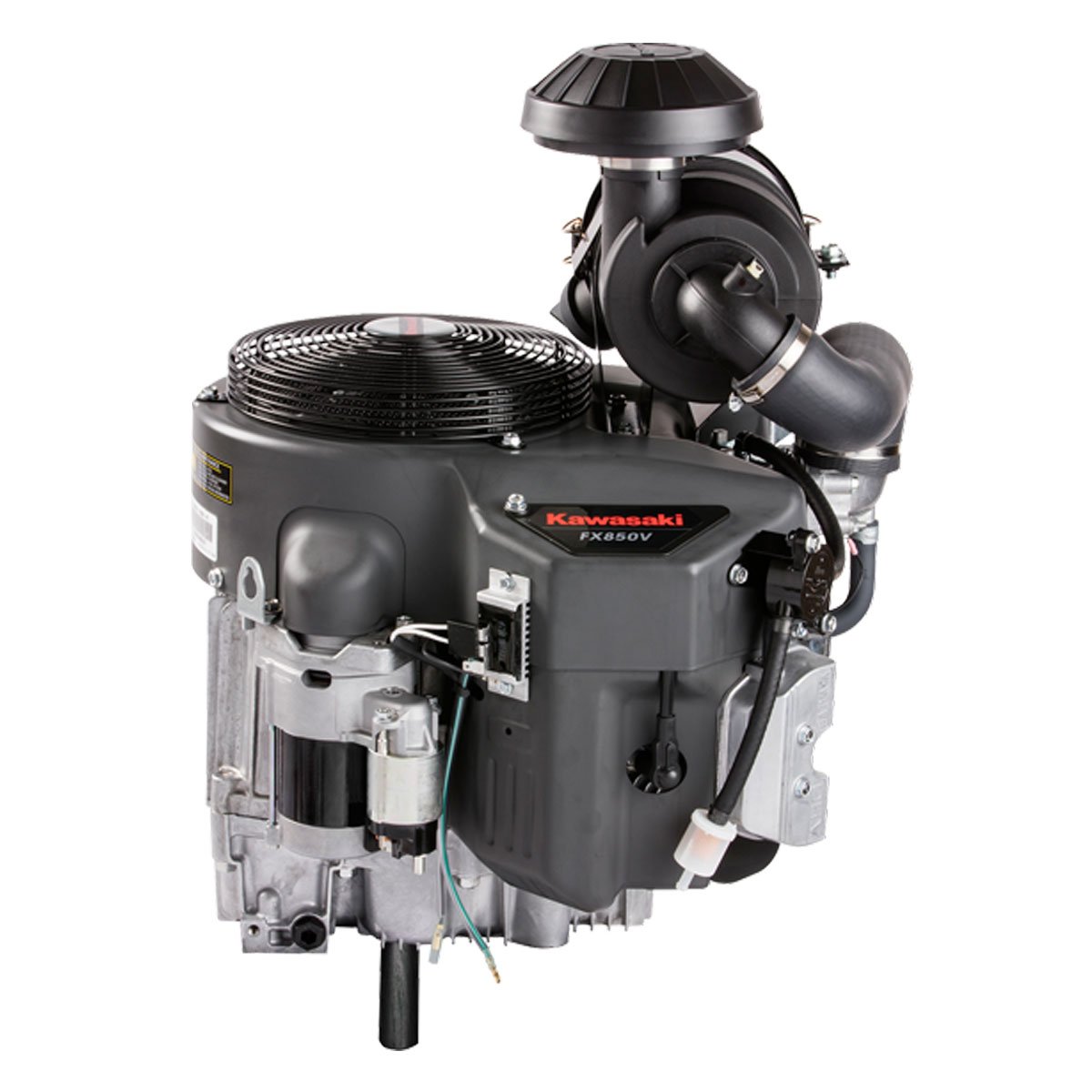

The FX850V engine is precision-built to bring power for the toughest jobs you've got.

Serious torque is on tap with this V-twin 4-cycle engine with heavy duty shift-type starter and twin barrel, internally vented carburetor with fuel shut-off solenoid.

FEATURES

• Overhead v-valve
• 90° V-twin
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• High efficiency oil cooler
• Rotating metal grass chopper screen
• Multi-Stage canister air filter
• Cast-iron cylinder liners
• Metal engine cover with integrated clean out ports
• Heavy duty shift-type starter

SPECIFICATIONS

• Displacement: 852 cc (52.0 cu. in.)
• Number of Cylinders: 2
• Bore x Stroke: 3.33 x 2.99 in. (84.5 x 76mm)
• Compression Ratio: 8.2:1
• Oil capacity w/filter: 2.4 U.S. qt. (2.3 L)
• Maximum Power: 27.0 hp (20.1 kW) at 3,600 rpm
• Maximum Torque: 45.6 ft-lb. (61.8 N·m) at 2,400 rpm
• Dry Weight: 124.0 lb. (56.4 kg)
