Description:

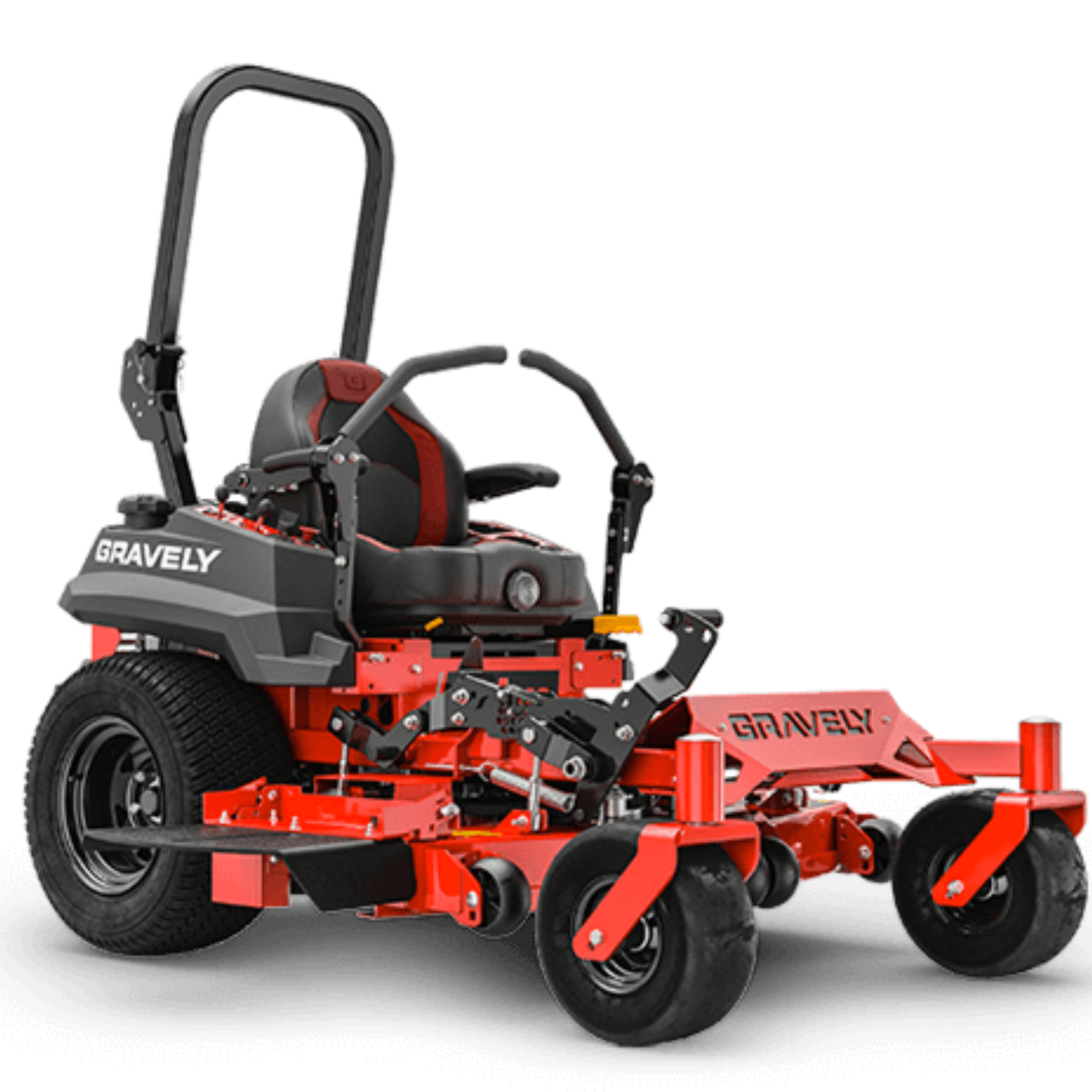

Put your best foot forward with the power and performance of the PRO-TURN 100.

Every inch is of value on the PRO-TURN 100. Packed with Gravely brand’s time-tested features, this hard-working mower stands up to your toughest jobs.

Features:

• X-Factor® II Deck
• The 7-gauge, X-Factor® II deck is fabricated from top to bottom, providing industrial-strength peace of mind that’s reinforced with an exclusive limited lifetime warranty.
• CBT System
• Our exclusive Constant Belt Tension (CBT) system ensures that belt tension is maintained, keeping the blade tip speed and cutting results consistent.
• Seating System
• A full-suspension seat provides added lateral stability and improved durability with vibration control and a four-inch seat slide for all-day comfort.

Specification:

Model Number

• 991128

Power Train

• Engine Brand: Kawasaki®
• Engine Model: FX691V
• Horsepower: 22
• Engine Displacement: 44.3 in³ / 726 cc
• Fuel System: Gas
• Fuel Capacity: 10 gal / 37.9 ltr
• Drive System: Hydro-Gear® ZT-3400 Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Lever Activated Parking
• Driver Position: Sit
• Ground Speed Forward: 10 mph / 16.1 kph
• Ground Speed Reverse: 5 mph / 8 kph
• Wheels Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 15.2 cm)
• Wheels Rear: 23.0 x 10.5 in - 12.0 in (58.4 x 26.7 cm - 30.5 cm)

Electric

• Battery Capacity: 300 CCA
• Battery Type: Lead Acid - Maintenance Free
• Battery Size: U1

Deck

• Deck Size: 48 in / 121.9 cm
• Coverage Hour: 4.8 acres / 1.9 hectares
• Deck Material: 7 ga
• Deck Construction: Fabricated X-Factor ® II
• Discharge Configuration: Side
• Cutting Height Min: 1 in / 2.5 cm
• Cutting Height Max: 5 in / 12.7 cm
• Cutting Width: 48 in / 121.9 cm

Dimensions

• Weight (Assembled): 1062 lb / 481.6 kg
• Length: 78.5 in / 199.4 cm
• Width: 48 in / 121.9 cm
• Width (Chute Up): 50 in / 127 cm
• Width (Chute Down): 62 in / 157.5 cm
