Description:

Raising the bar. On everything.

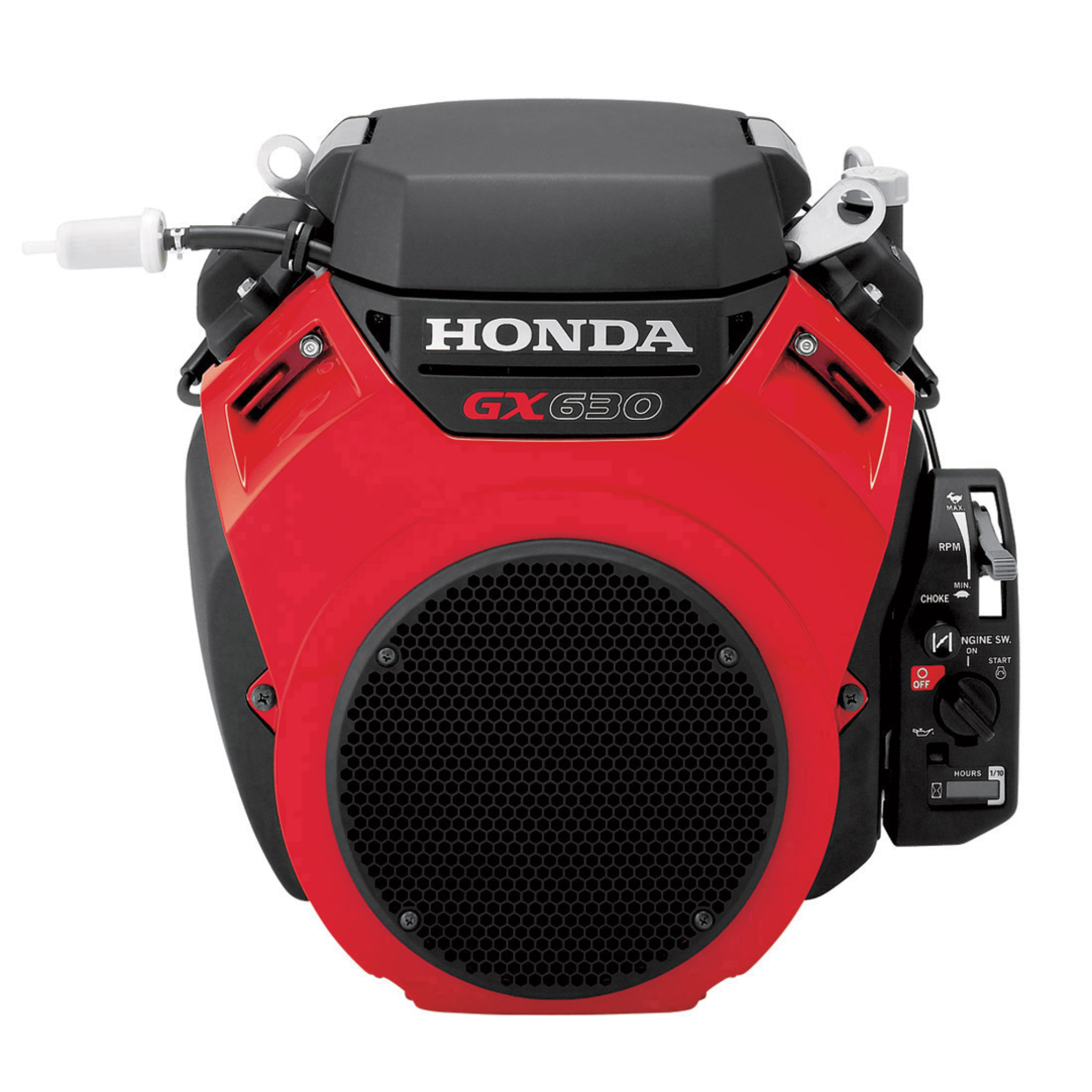

Honda V-twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency. Not to mention a 3-year warranty.

• COMMON APPLICATIONS
• Pressure washers
• Commercial lawn and garden equipment
• Tillers / cultivators
• Generators
• Forestry equipment
• Construction / industrial equipment
• Agricultural equipment
• Small vehicles
• Water pumps

Features:

• Fuel Efficient Operation:
• Fuel economy similar to fuel injection with the simplicity of carburetion
• Digital CDI ignition system with variable timing and rev limiter
• Two barrel inner-vent carburetor for precise fuel metering
• Insert style rod bearings
• High Output Performance:
• Hemispherical combustion chamber for rapid combustion
• 9.3:1 compression ratio for high power output without premium fuel requirement
• Forged steel crankshaft
• Pressure fed crankshaft bearings
• Smooth Performance:
• Integrated cylinder and head design
• Racing inspired forged steel connecting rods
• Exceptionally Quiet:
• High capacity 36 blade cooling fan
• Aluminum push rods with steel tips for lighter weight, lower vibration, and quieter operation
• Proven Reliability:
• High capacity pump for consistent oil delivery
• Dual cylindrical air filter
• Large diameter air intake for superior cooling
• 3-Year Limited Warranty
• Oil Alert system
• Easy to Use and Maintain:
• Hour meter available
• Conveniently located controls with multiple configurations
• Automotive-type spin-on oil filter
• Easy Starting:
• Automatic mechanical decompression system
• Variable ignition timing
• Emissions Compliant:
• No catalyst necessary
• Available Options:
• High capacity charging systems
• Various control box configurations
• Hour meter
• Dry fuel versions

Specification:

Engine Type:

• Air-cooled 4-stroke OHV (Overhead Valve)

Bore x Stroke:

• 78 x 72 mm

Displacement:

• 688 cm³

Net Power Output:

• 20.8 hp (15.5 kW) at 3,600 rpm

Net Torque:

• 35.6 lb-ft (48.3 Nm) at 2,500 rpm

PTO Shaft Rotation:

• Counterclockwise (from PTO shaft side)

Compression Ratio:

• 9.3:1

Lamp/Charge Coil Options:

• 2.7A, 17A, 26A

Carburetor:

• Horizontal type, two barrel butterfly valve, internal vent

Ignition System:

• Digital CDI with variable ignition timing

Starting System:

• Electric

Lubrication System:

• Forced lubrication

Governor System:

• Mechanical

Air Cleaner:

• Dual element

Oil Capacity:

• 2.1 US qt (2.0 liters)

Fuel:

• Unleaded 86 octane or higher

Dry Weight:

• 96.8 lb (44 kg)

Dimensions:

• Length: 15.9" (405 mm)
• Width: 16.1" (410 mm)
• Height: 17.2" (438 mm)
