Description:

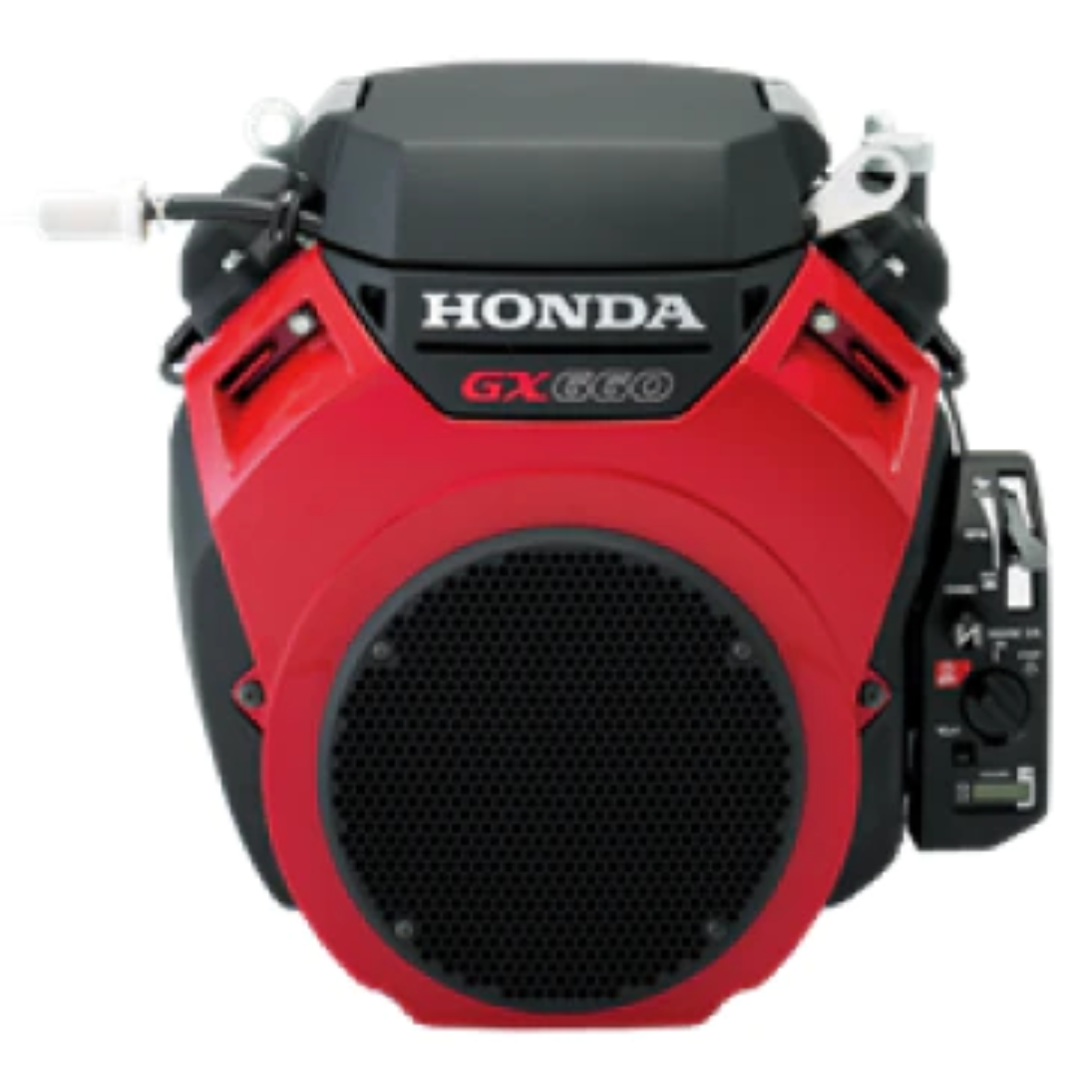

When you need an engine that can perform consistently on the job site, the farm, or virtually anywhere else, the GXV660 delivers solid performance, efficiency and adaptability.

Common Applications

Commercial lawn and garden equipment Tractors Construction/industrial equipment Agricultural equipment Small vehicles

Features

FUEL-EFFICIENT, HIGH-OUTPUT OPERATION

Fuel economy is similar to fuel injection, with the simplicity of carburetion

• Variable timing digital CDI ignition
• Includes a rev limiter to protect against damage from over-revving
• Two barrel inner-vent carburetor for more precise fuel metering
• Insert style rod bearings

HIGH-OUTPUT PERFORMANCE

Hemispherical combustion chamber

• 9.3:1 compression ratio generates high-power output without the need for premium fuel
• Forged steel crankshaft
• Pressure-fed crankshaft bearings

SMOOTH PERFORMANCE

Integrated cylinder and head

• Racing-inspired forged steel connecting rods

EXCEPTIONALLY QUIET

High-capacity 36-blade cooling fan

• Aluminum push rods with steel tips, lighter weight, lower vibration, and quieter operation

PROVEN RELIABILITY

High-capacity oil pump

• Dual cylindrical air filter
• Large-diameter air intake for superior cooling
• 3-Year Limited Warranty
• Oil Alert®

EASY TO USE AND MAINTAIN

Hour meter available

• Conveniently located controls, with several configurations available based on user preference
• Automotive-type spin-on oil filter

EASY STARTING

Automatic mechanical decompression system

• Variable ignition timing

Emissions Compliant

CARB and EPA certified

• No catalyst necessary

Available Options

High-capacity charging systems

• A variety of control box configurations
• Hour meter
• Dry fuel versions

Specification:

• Engine Type: Air-cooled 4-stroke OHV
• Bore x Stroke: 78 mm x 72 mm
• Displacement: 688 cm³
• Net Power Output: 21.5 hp (16.0 kW) @ 3,600 rpm
• Net Torque: 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Compression Ratio: 9.3:1
• Fuel Tank Capacity: N/A
• Lamp/Charge coil options: 2.7A, 17A, 26A
• Carburetor: Horizontal type, two barrel butterfly valve, internal vent
• Ignition System: Digital CDI with variable ignition timing
• Starting System: Electric
• Lubrication System: Forced lubrication
• Governor System: Mechanical
• Air Cleaner: Dual element
• Oil Capacity: 1.9 litres (2.0 U.S. quarts)
• Fuel: Unleaded 86 octane or higher
• Dry Weight: 44 kg (96.8 lbs)
