Description:

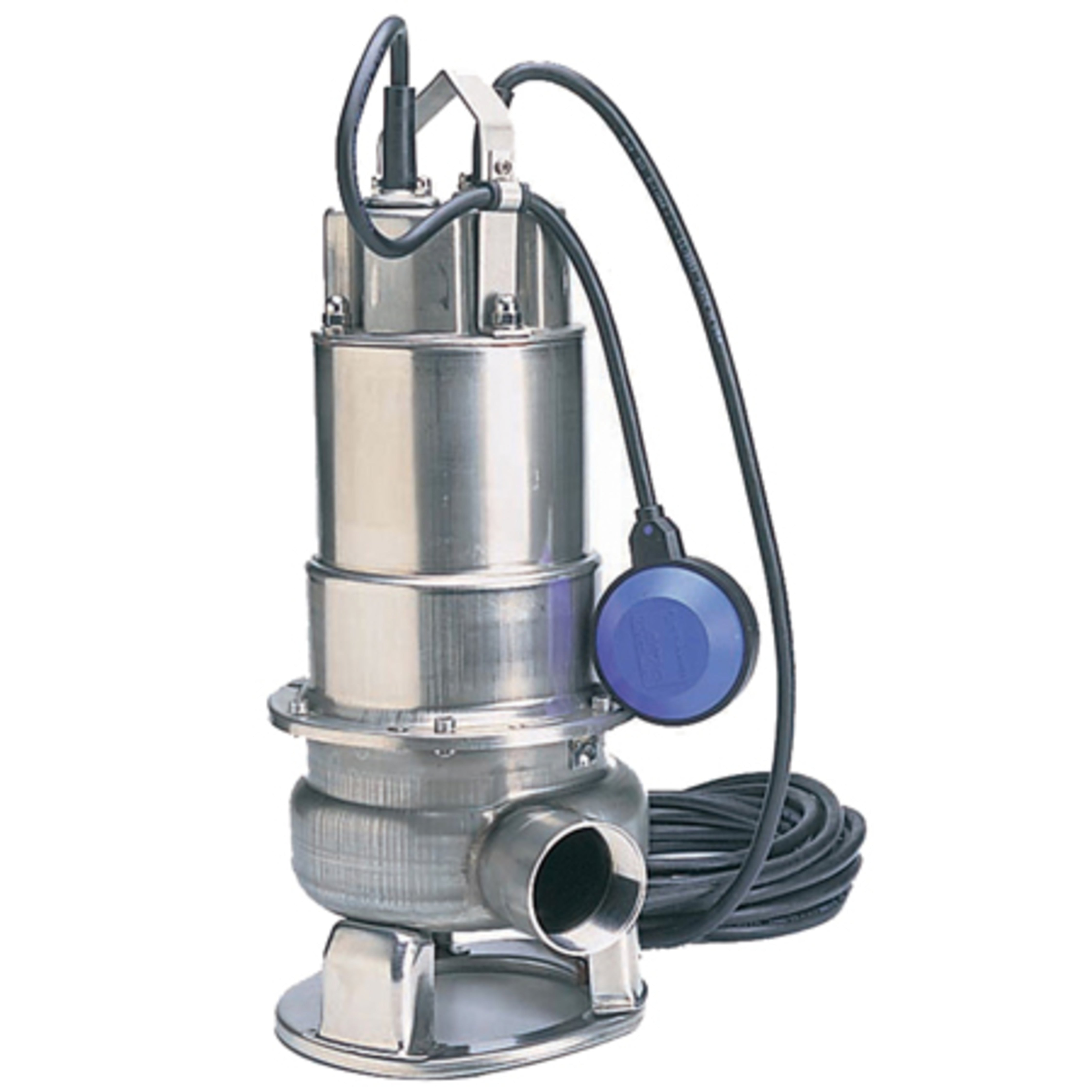

1/2hp, 115V submersible trash pump

115 Volt operation allows the pump to be plugged into a standard outlet. (GFCI is recommended).

Solids handling up to 2.0"

Move slurry and dirty liquids without the worry of damaging the pump.

Ideal for draining basements, window wells, garden irrigation, decorative fountains and more

110 gal./min capacity

Rated for continuous use

Operates on continuous duty in temperatures of up to 104°, and intermittent duty up to 140°. Since this pump can be used 7 days a week, 24 hours a day, it is suitable for any application that needs to move water from one place to another on a continuous basis.

Solids handling up to 2.0"

Move slurry and dirty liquids without the worry of damaging the pump.

Lightweight, durable stainless steel casing

The pump won’t rust or corrode, minimizing costly repairs and replacement. The 304 stainless steel is an industrial grade, again minimizing damage and reducing the need for repairs.

Automatic non-mercury float switch

Honda submersible pumps use a mechanical float switch instead of mercury, eliminating the use of hazardous materials in the pump.

Built in thermal reset switch

If the pump overheats, it automatically resets itself after the pump cools down. This is designed to protect the motor from periodic overheating.

25 foot heavy duty cord

Side discharge

Side discharge submersible pumps offer higher discharge and solids handling capabilities of up to 2 inches.

Operates fully or partially submerged

No need to worry about the water level for the pump!

Shielded ball bearings for added durability

Shielded ball bearings, both top and bottom, add significantly to the longevity of the pump.

Efficient air-insulated motor

Oil lubricated double mechanical seals

Oil lubricated double mechanical seals prevent damage to the seal if the pump is run dry.

Pump Specifications:

• Pump Type: Submersible Trash Pump
• Starting Type: Automatic
• Casing: Stainless Steel
• Motor (HP): 1/2
• Voltage: 115
• Starting Amps: 34
• Running Amps: 8.3
• Duty: Continuous
• Motor Insulation: Class F
• Overload Protection: Built-In Thermal Automatic Reset

Performance:

• Discharge Type: Side
• Discharge Capacity: 110 gpm (gallons per minute)
• Max. Head (Feet): 32
• Port Diameter (Inches): 2.0 FNPT
• Maximum Pressure: 14 psi
• Solids Handling: Up to 2.0 inches

Components:

• Impeller: Single Channel Stainless Steel
• Seals: Tandem Mechanical Carbon/Ceramic - upper SIC/SIC - lower

Power and Dimensions:

• Cord Length: 25 feet
• Cord Type: Heavy-Duty 115V
• Dimensions (WxH): 9.0 inches x 21.5 inches
• Pump Diameter: 9.0 inches
• Dry Weight: 36 lbs.

Warranty:

• Residential Warranty: 1 year
• Commercial Warranty: 1 year
