Kawasaki Engines -DM17S

DESCRIPTION

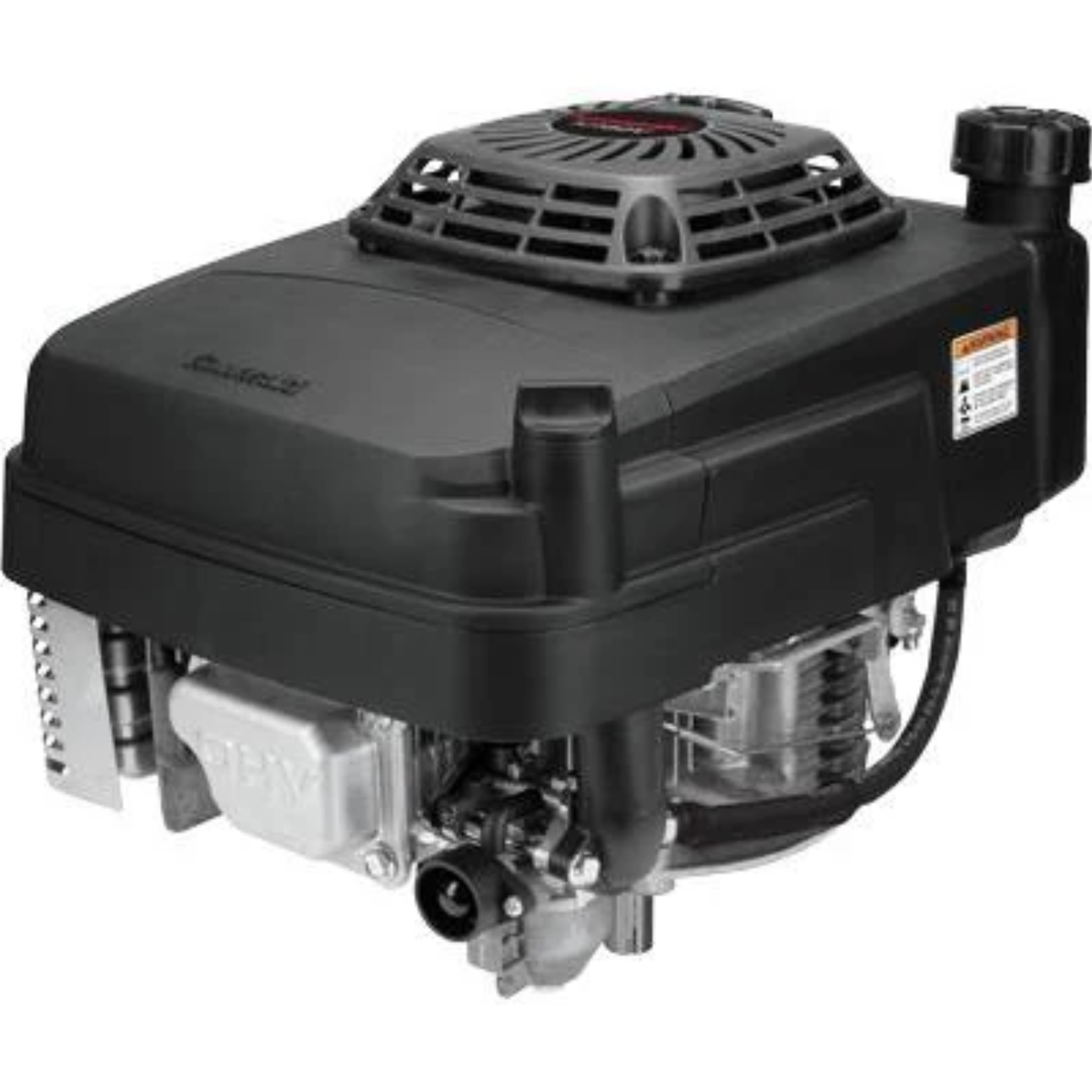

The FJ180V engine is an all-purpose, heavy-duty engine that is compact and lightwieght. This overhead valve engine is ready to work for you in walk-behind mowers, construction, agricultural, or turf and golf machines.

FEATURES

Overhead valve Flywheel magneto transistor ignition Recoil starter with automatic compression release Dual element air cleaner Low-tone muffler with guard Fuel shut-off valve Cast-iron cylinder liner

SPECIFICATIONS

Displacement: 179 cc (10.9 cu. in.) Number of Cylinders: 1 Bore x Stroke: 2.6 x 2.1 in. (65 x 54mm) Compression Ratio: 8:5:1 Oil capacity w/filter: 0.6 U.S. qt. (0.6 L) Dry Weight (without muffler): 29.8 lb. (13.5 kg)

ENGINE

Cylinders 1 Bore x Stroke 2.6 x 2.1 in. (65 x 54mm) Displacement 179 cc (10.9 cu. in.) Compression Ratio 8:5:1

DIMENSIONS

Weight 29.8 lb. (13.5 kg)
