Description:

Features:

• Model# CH270-3152, 3/4" x 2.42" Straight Crankshaft, Tapped 5/16"-24
• Utility / General applications like log splitters, pressure washers, compressors & tillers
• Supercedes models CH270-0011 and CH270-3011

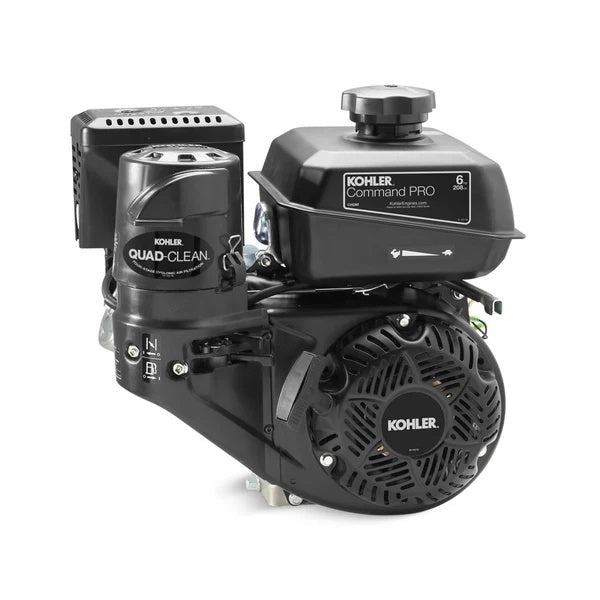

• KOHLER Command PRO™ E3 CH270 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
• Produces 10.5 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
• Maximum Side Load Characteristics
• Steel-forged crankshaft and cast iron cylinder bore
• Stellite® faced exhaust valve with Tuftride® coated stems and dual ball bearings
• Quad-Clean™ All-Season Four-Stage Cyclonic Air Filtration System
• Only the cleanest air is entering the engine- maximizing engine power and life
• Recycles engine heat for effortless starts in all weather and conditions
• Longer Run Time Between Fill-Ups
• Advanced ignition system reduces fuel consumption
• Large 1 gallon fuel tank
• Smoother, Quieter Performance
• Large capacity oversized muffler with heat shield and spark arrestor
• Sound-deadening alloy crankcase and silenced air intake
• Oil Sentry Automatic Low Oil Engine Shutdown System
• Added engine protection- no light

Specifications:

• Engine Series: Command Pro
• Engine Style: Horizontal
• Engine Type: 4-Cycle OHV
• Cylinders: 1
• Cooling System: Air-cooled
• Dry Weight: 38.7 lbs
• Displacement: 208 cc
• Horsepower: 7 HP
• Maximum Torque: 10.5 lbs-ft
• Cylinder Bore Type: Cast Iron
• Bore: 2.8 inches
• Stroke: 2.1 inches
• Compression Ratio: 8.5:1
• CARB Compliant: No
